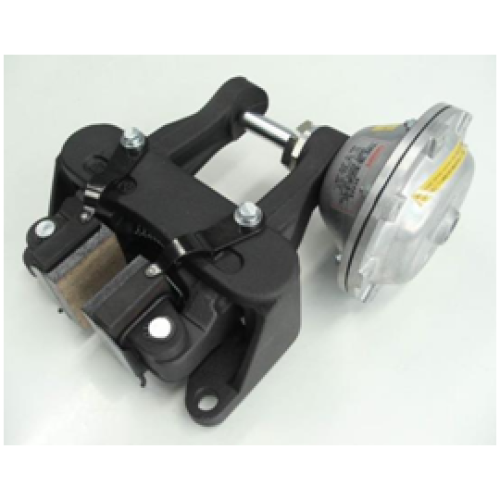

Suntes – Pneumatic Disc Brakes
|
Type |
Usable disc dia. (mm) |
Disc thickness (mm) |
Wear allowance of pad (mm) |
Mass (g) |
|
DB-3012A |
D 200 ~∞ |
10 |
7 |
6 |
|
DB-3010A |
D 200 ~∞ |
10 |
7 |
7.8 |
|
DB-3020A |
D 200 ~∞ |
20 |
7 |
8.5 |
|
DB-3034A |
D 500 ~∞ |
38 |
15 |
14 |
|
DB-3035AW |
D 500 ~∞ |
38 |
15 |
45 |
|
DB-3032A |
D 500 ~∞ |
38/50 |
15 |
60 |
|
DB-3033A |
D 500 ~∞ |
38/50 |
15 |
155 |
|
DB-3038A |
D 600 ~∞ |
50/75/100 |
20 |
77 |
|
DB-3039A |
D 900 ~∞ |
50/75/100 |
20 |
185 |
