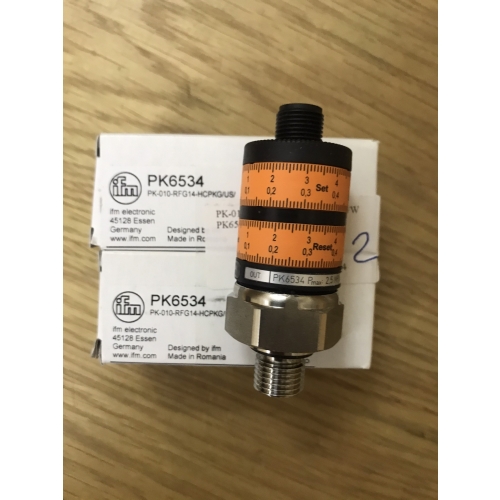

| Product characteristics |
| Output signal |
switching signal |
| Measuring range |
| 0…10 bar |
0…1000 kPa |
0…1 MPa |
|
| Process connection |
threaded connection G 1/4 external thread internal thread:M5 |
| Application |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature [°C] |
-25…80 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure |
| Electrical data |
| Operating voltage [V] |
9.6…32 DC |
| Current consumption [mA] |
< 25 |
| Min. insulation resistance [MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
complementary |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
500 |
| Switching frequency DC [Hz] |
100 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| 0…10 bar |
0…1000 kPa |
0…1 MPa |
|
| Set point SP |
|
| Reset point rP |
| 0.3…9.8 bar |
0.03…0.98 MPa |
|
| Accuracy / deviations |
| Switch point accuracy [% of the final value] |
< ± 2,5; (Setting accuracy) |
| Repeatability [% of the final value] |
< ± 0,5; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the final value] |
< ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Temperature drift per 10 K |
< ± 0.5 |
| Software / programming |
| Adjustment of the switch point |
setting rings |
| Operating conditions |
| Ambient temperature [°C] |
-25…80 |
| Storage temperature [°C] |
-40…100 |
| Protection |
IP 67 |
| Mechanical data |
| Weight [K40] |
93 |
| Materials |
PBT; PC; FKM; stainless steel (1.4404 / 316L) |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); FKM |
| Min. pressure cycles |
50 million |
| Tightening torque [Nm] |
25 |
| Process connection |
threaded connection G 1/4 external thread internal thread:M5 |
| Restrictor element integrated |
no (can be retrofitted) |
| Displays / operating elements |
| Display |
| operation |
LED, green |
| switching status |
LED, yellow |
|
| With scale |
yes |
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12 |
